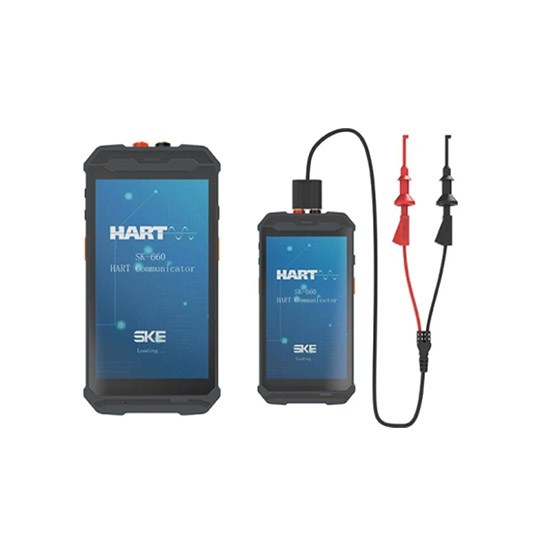

SKE 660 HART COMMUNICATOR.
The SKE 660 HART Communicator is a rugged handheld device designed for configuration, calibration, and diagnostics of HART field instruments. It supports reliable communication with HART devices and provides a user-friendly color LCD interface for efficient field operations.
This communicator features rechargeable battery support, intrinsically safe design, and upgradeable device library, making it suitable for industrial environments and process automation applications.
Features:
- Supports HART communication protocol
- Handheld and portable design
- Color LCD display with touch interface
- User upgradable device library
- Intrinsically safe operation
- Rechargeable battery powered
- Provides 24V loop power to field devices
- Rugged and reliable for industrial use
- Fast communication and diagnostics capability
Product Details
| Model | SKE 660 HART Communicator |
| Device Type | Handheld |
| Protocol Support | HART |
| Display Type | Color LCD |
| Loop Power | Internal |
| Power Source | Rechargeable Battery |
| Memory Card | No Card |
| Device Library | User Upgradeable |
| Intrinsically Safe | Yes |
| Electrical Connector | M20×1.5 (F) / 1/2 NPT |
| Display Size | 5.5 inch capacitive touch screen (1280×720) |
| Ambient Temperature | -20°C to +70°C |
| Ambient Humidity | 0% – 95% RH (No condensation) |
| Protection Rating | IP67 |
| Size | 168 mm × 84 mm × 17.5 mm (L×W×H) |
| Weight | Approx. 300 g |
| Battery Charger Input | 100-240V AC, 5V/2A Output |
