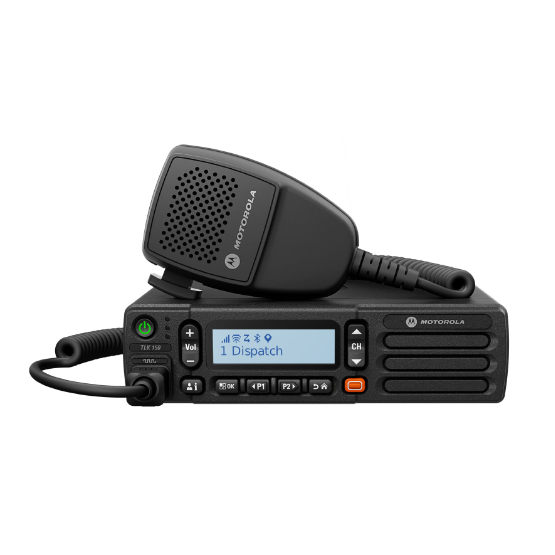

MOTOROLA MOBILE RADIO WAVE PTX TLK 150

The Motorola WAVE PTX TLK 150 is a nationwide, in-vehicle push-to-talk mobile radio built for rapid, reliable deployment. It combines the broad coverage of a nationwide broadband network with the ease of 4G LTE push-to-talk, so drivers can safely operate with one-button PTT while managing talkgroups and subscriptions in real time. With 12V/24V dual voltage support and a Giboshi terminal adapter provided in-box, the TLK 150 is designed for straightforward vehicle installation without costly spectrum licensing or manual programming.


Radio Features


Connectivity :
4G LTE, 3G, Wi-Fi (802.11 a/b/g/n) and Bluetooth V4.2 BR/EDR + BLE

Channel & Contacts :
96 channels, 300 contacts

Power Supply :
12V/24V dual voltage support with Giboshi terminal adapter in-box

Audio :
4W internal / 16W external (4 ohms) rated audio

Build & Environment


Dimensions :
169 x 44 x 93 mm, 640g

Ingress Protection :
IP54

Location :
GNSS / A-GPS – GPS, GLONASS, Galileo, BeiDou

Operating Temperature :
-20°C to +60°C

  • PMMN4129 – Wideband Compact Mobile Microphone
  • GMMN4065 – Visor Microphone
  • RLN4856 – Remote Mount Footswitch Push-to-Talk
  • RLN4857 – Remote Mount Pushbutton Push-to-Talk
  • RLN6466 / RLN6467 – Low / High Profile Trunnion Kit
  • FTN6083 – In-Dash Mounting Kit (DIN)
  • AC000240A01 – Wideband External Speaker, 13W
  • AN000358A01 / AN000359A01 – LTE / GNSS Dash Mount Antenna
  • HKN4137 – Mobile Power Cable, 10FT
